The register of contaminated sites has successfully been implemented in the province of Nam Dinh between 2005 and 2008. Before starting the recording of the data, we had to find out, whether the sources and methods that are used in Germany can also be applied in Vietnam. The following deals with the main results and shows the most important strategies to record data about contaminated sites.

1        Introduction

A successful treatment of contaminated sites requires a systematic and gradual procedure - such procedures have proven their value in Germany for many years. The first step of treatment is the registration (recording) of contaminated sites.

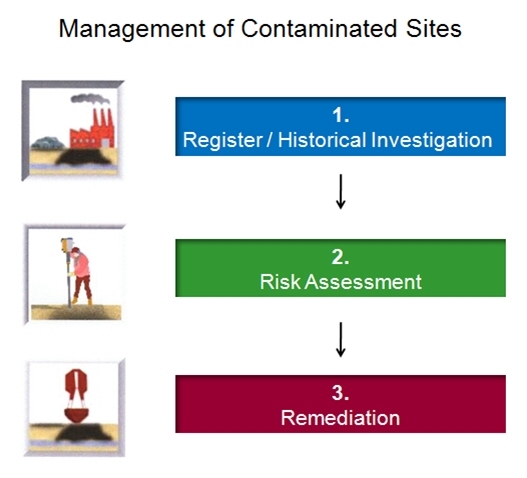

Fig. 1: Treatment of contaminated sites as a multi-stage process

In Germany, the biggest mistakes were made, when remediation took place without the steps of recording and risk assessment.

The object of recording is:

• conducting area-wide investigations of industrial and waste disposal sites and their compilation in a list;
• the assessment of the industrial and waste disposal sites investigated with regard to identifying sites suspected to be contaminated;
• conducting extensive site-related investigations;
• assessment of the results of the investigations in the sense of a first risk assessment and further measures resulting from it.

 Content and target of the investigations are:

• classification of specific case groups of industrial and waste disposal sites or individual cases of areas suspected to be contaminated,
• determination of the position and spatial extension of the potentially contaminated areas and
• collection and processing of all further information relevant to environment about the individual areas

Investigations do, as a rule, not involve local investigations exceeding a potential site inspection. Boring, sounding, chemical-physical investigations etc. are basically left to the subsequent stages. The data and findings gathered are filed in registers and files and updated and represented on maps by the competent authorities.

The investigations led by the authorities follow basically two aims:

• detection and localization of possibly all industrial sites and waste disposal sites situated in the area of responsibility of an authority (area-wide investigations).
• compilation of all detailed information required for the individual treatment (site-related investigations).

Against the background of the target of the investigations, namely to record and document uses and events which may play a (restrictive) part in planning a follow-up use normally the following object categories have to be investigated:

• Buildings and plants and their use: An essential object of recording is always the stock of buildings and plants as it has developed in the course of the history of use. To assess uses with regard to a potential pollution risk, all uses – independent of their relevance to environment – are recorded and reflected in the maps of the results.
• Sewerage system and sewage plants: As far as existing, the sewerage system is recorded and represented on maps. An important target of research is to record the (formerly) existing sewage plants.
• Waste disposal sites: Furthermore, sites will have to be determined where material has been deposited. In most of the cases, it will not be possible to determine the deposited material; however, waste disposal sites have to be recorded as deposits or backfills.
• Storage areas: Storage areas will be recorded as a further object category. They are defined as areas where piece goods or bulk material (partly not to be specified in a more detailed way) have been stored.

2        Methods and sources of recording contaminated sites

Basically, there are only a few information sources available, if any at all, providing directly

• the partial areas of a site which are possibly contaminated,
• the contamination concerned
• when or in which period potential damage was inflicted.

For practical site-related investigation, this means that only in exceptional cases, areas suspected of being contaminated on a site closed down may be immediately spatially localized and classified as to content and time.

As a rule, these areas have to be localized and classified indirectly, namely through detecting all potentially polluting uses and activities including the waste disposal sites and backfills connected with them and accidents and cases of damage.

In practical site-related investigation four methods have proved to be especially efficient:

1. archive research with evaluating the unprinted and printed documents obtained in public archives and company archives and in official (old) registries,
2. multi-temporal mapping, i.e. the evaluation of maps and aerial photos of various subjects and times of origin,
3. questioning of contemporary witnesses
4. site inspection to understand the current situation.

As a rule, it is not sufficient to apply only one of the methods mentioned above. In German practice, notably the combination of the first and second methods has proved successful, whereas questioning of contemporary witnesses is to be recommended only if after completing archive research/evaluation of documents and records as well as multi-temporal mapping, obvious gaps still exist. If possible, the findings of recording should be supplemented by a site inspection.

2.1     Archive research and evaluation of documents and records

In the course of the history of use of a site, from today’s point of view, necessarily more or less comprehensive documents and records with directly or indirectly usable information relevant to environment have been compiled. Typical examples of such documents and records are:

• operating licences,
• applications for permissions for the construction and reconstruction of buildings and plants,
• respective layouts and plant layouts at specific times of industrial site development, furthermore
• production and other plant reports and
• damage information relating to accidents including war damage.

The evaluation of this documentation – frequently compiled over decades – as a rule, will supply important information on

• the historical building and plant stocks and their functions (fig. 2),
•  potential accidents/leakage and other singular events such as military actions,
• manufacturing methods (relevant to contaminated sites) and other industrial procedures and sequences of work
• ownership systems (and their change).

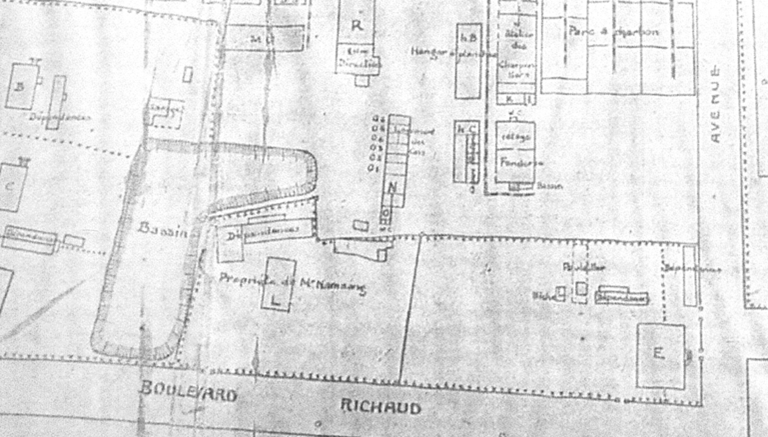

 Fig. 2:         Part of a site-plan of a textile company in Vietnam from 1928

To efficiently find documents and records, it is basically recommended to adopt an approach deriving from the official regulations relating to the transmission of documents and records. Document stocks considered to be worth archiving are usually arranged and stored according to the provenance and site principle, i.e. according to sites where they have been compiled. Accordingly, there has to be, first of all, reconstructed which operations are of relevance to contaminated sites (mostly) without being indicated by the titles of the records. Subsequently, there has to be determined which authorities or company departments have been dealing with a process possibly relevant to contaminated sites.

Then the archives or information offices competent for storing the records of the sites concerned will have to be found.

In this connection, attention should be paid to the fact that administrative competences on the decision-making level as well as in the regional subordination (administrative reforms) (may) have changed. Furthermore, documents with information relevant to contaminated sites may not only be available on one level but, by the parallel transmission of specific records/documents, on a few archive levels.

Site-related investigations will normally start with finding the relevant records on local level. Which archive or official (old) registry shall be, here, consulted preferably is scarcely generally binding but ultimately to be decided only depending on the case-specific basic conditions. If a company archive exists for the site under investigation and access to it can be provided, the research should start there at any rate.

If in research on local level obvious gaps in transmitting documents appear, the competent archives on regional or national levels have to be considered in further stages.

2.2     Multi-temporal evaluation of maps and aerial photos

The multi-temporal mapping involves a combined analysis of maps (in particular official topographic, yet also other maps) and aerial photos with the evaluation of these area reproducing information carriers - taking place not only on one time level but – multi-temporally – in several periods.

The information value of topographical maps is distinctly lower than that of aerial photos – mainly due to a generalization. The larger the scale the more suitable the map in terms of recording. The most suitable scale is 1: 5,000, followed by the scales 1: 10,000 and 1:25,000.

However, aerial photos are essentially more substantial than maps and document a site with all details without generalizing exactly the condition and appearance at the time of taking the photo (Fig. 3). Information relevant to contaminated sites provides aerial photos notably of fills and deposits, the supplementation and checking of the building and plant stocks resulting from the evaluation of the plant layout.

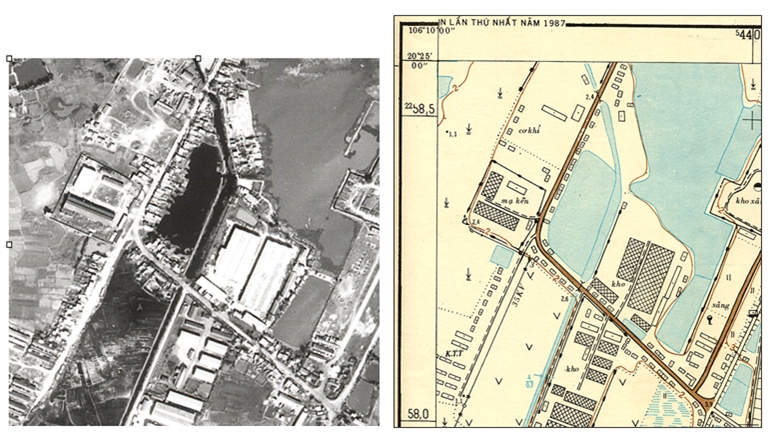

    Fig. 3:     Aerial photo and topographical map of the same region in Vietnam. (Source: Information Centre of Natural Resources and Environment, Vietnam)

In many phenomena of use, the identification of objects is possible without causing problems due to visual properties such as object shape (layout/front view), object size (length, width, height), position and arrangement on the terrain or towards other objects. Thus, among former industrial plants e. g. tanks, cooling towers and other prominent plants with unmistakable building and structural properties visible on aerial photos, as a rule, may be easily identified. However, some buildings and plants appear on the aerial photos so nonspecifically that – due to their position and arrangement – they may be only indirectly identified in their functions, with a respective uncertainty or not at all. In investigating and mapping former industrial sites, the interpretation of aerial photos has to be regarded rather as a method supplementary to the evaluation of the plant layouts or – depending on the records and plans – also the other way round. The combined application of both methods is imperative to reach satisfactory results of research of the plant and building stock since aerial photos document plant (units) can often not be found in plant layouts. On the other hand, aerial photos show frequently that buildings shown in plant layouts have partly not left their “stage of planning”, i.e. have never been built. As compared with aerial photos plant layouts are so important because – as mentioned above – an assignment of the functions of (historical) buildings and plants is only seldom possible solely on the basis of aerial photos.

However, aerial photos are frequently the only source to record potential waste disposal sites. Waste disposal sites may be identified on the aerial photo by various features. On a black-and-white aerial photo they stand out by a lighter or darker grey shading – independent of a. o. material properties and incidence of light. On an aerial colour photo possibly colour properties of a waste disposal site or its surrounding facilitate its identification (fig. 4).

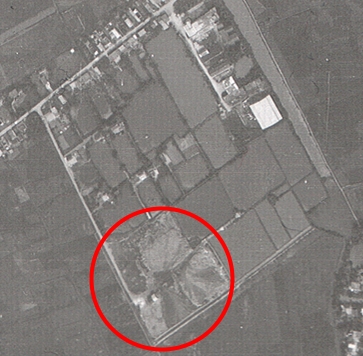

  Fig. 4:       Waste disposal near the city of Nam Dinh in an aerial photo (Source: Information Centre of Natural Resources and Environment, Vietnam)

The contours of waste disposal sites are mostly irregular and not always clearly definable. As a matter of fact, many types of waste disposal sites in their original state show carrying-over seams of a few meters which render impossible sharp fencing even on the terrain.

The three-dimensional character of former waste disposal sites should be detected by means of optical instruments rather than through hard shadows. The use of stereoscopes is obligatory for the identification of former waste disposal sites. The multi-temporal evaluation of aerial photos allows to map various dumping phases and – if existing – to identify also a change of material.

2.3              Questioning

If questioning should bring useful results it has to be ensured that the persons questioned have founded special and also respective site knowledge. In addition, they should have a sufficiently reliable memory and, last but not least, they should be ready to give unreservedly information about processes and facts relevant to the environment.

Though, in current cases, it is in general not very difficult to find contemporary witnesses meeting largely this requirement profile, if knowledge about facts longer ago has to be obtained by questioning, finding suitable interview partners may prove to be a problem.

In Vietnam, some special, culture-specific problems concerning the questioning of time witnesses may occur – and have previously occurred. Since the aim of the management often is to evoke an impression of already sufficient measures being taken, not all witnesses meet the standards that need to be employed to gain relevant pieces of information. Although the government and local authorities are recognizing the importance of environmental protection, the appearance of a company on the list of Decree 64 is still widely considered to be a “shame”.

The results of questioning contemporary witnesses – even if prepared and carried out in a professional way – always need to be assessed critically. In fact, questioning may impart absolutely new, basic knowledge on uses of the site relevant to environment and thus contribute to supplementing the data stock of a site-related investigation. This, however, applies predominantly to uses and events of a more recent date.

2.4       Site inspection

In conclusion of a site-related investigation a detailed inspection of the site under investigation is recommended. Such a site inspection serves, on the one hand, the documentation of the current state (a. o. by photos) and, on the other hand, the aim of supplementing the findings of research by considering the following aspects:

• mapping of perceptible contamination; to investigate and assess soil pollution the use of a folding spade may be useful. However, there should be checked in advance whether a ground photo will be required (protective measures, waste disposal etc.);
• subsequent investigation of relevant units of a plant (separator etc.) to be neither recognized on the aerial photo nor indicated in plant layouts;
•  assessment and classification of waste disposal sites still visible with regard to their material composition;
• clarification of building and plant functions so far uncertain.

In addition, type and state of sealing and further parameters relevant to the assessment and depending on the individual case may be collected. Ideally the site inspection is carried out accompanied by a person knowing the site and, if necessary, again in combination with questioning of contemporary witnesses.

If the advantage of a site inspection for supplementing the findings of the research and the documentation of the actual state is undisputed, its importance to site-related investigations is often overestimated. It need not be further commented that site inspections may, as a rule, supply information on a very small part of the history of use of a site, namely notably on the condition of the terrain after the plant was closed down.

Changes of the building and plant stock, overgrown waste disposal sites and backfills are only a few exemplary categories that cannot to be investigated with the means of site inspections. During site inspection, attention must be paid to industrial safety measures at all times.

3             Assessment of the results of investigation

The results of an investigation shall be always assessed differently with regard to their relevance. This means specifically that some areas of a site under investigation show a higher contamination risk than others. That is why it is important to plan all further measures to make a special assessment of the results of investigation and to distinguish between the investigated areas as to the extent of the risk. The investigated areas shall be distinguished according to the following pattern:

• high contamination risk
• medium contamination risk
• small contamination risk
• no contamination risk (as all uses are recorded, among others, of course, also such uses which are not connected with a contamination risk).
• contamination risk not to be classified (if the available information is not sufficient to assess the contamination risk)

Data from relevant literature provide the basis for the special assessment of the results of the investigation. Furthermore, the assessment shall be based on experiences made with comparable sites. In assessing the risk the following factors need to be considered:

• type of use
• period of use
• material potential
• risk restricting measures.

 4           The elementary components of the register: GIS and database

A register of contaminated sites is an area-wide information system basically consisting of two components (Fig. 5):

• geometrical data: refer to the position of a site relevant to environment on a large-scale map, its exact limits and – if necessary – details of respective uses
• site data: are data assigned to the site, informing on geographical details (such as co-ordinates), legal facts (such as owners) and aspects relevant to environment (such as industrial plants, accidents).

Area and site information are linked with each other through indices and are constantly updated. Formerly registers of contaminated sites were always arranged in parts of maps and records compiled and continued manually. Today registers of contaminated sites are compiled and continued by means of a data bank and GIS software. The digital „register of contaminated sites“ allows a comparatively faster access to individual data and is easier to be continued at lower costs.

A „functioning“ register of contaminated sites requires that

• all sites (of a regional corporate body) relevant to environment have been recorded and localized,
•  detailed information on the respective sites is available.

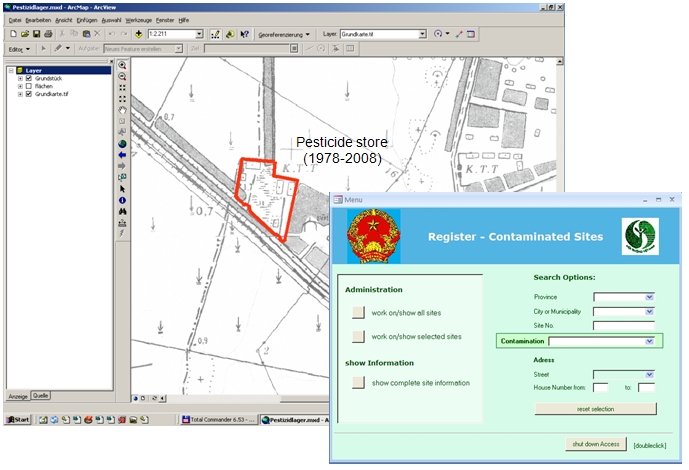

Fig. 5:         Schematic representation of the principle of the register of contaminated sites: geometric data and site data

The database contains some data fields, like the exact localization, the owners, the current use and benchmark data of the historical development of the site. The most important class of information is the current and former use of the buildings and facilities of the site. Fig. 6 shows as an example the function of each building of a pesticide store as well as the time of use. These data are directly linked with the Geographical Information System.

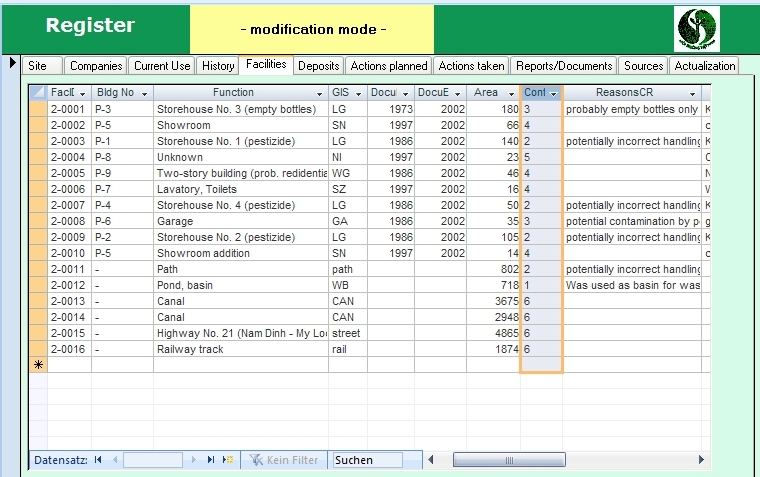

Fig. 6:         Database with information about the facilities within a site (pesticide store)

Figure 7 shows all the buildings of a pesticide store in different colors, which refer to their special function.

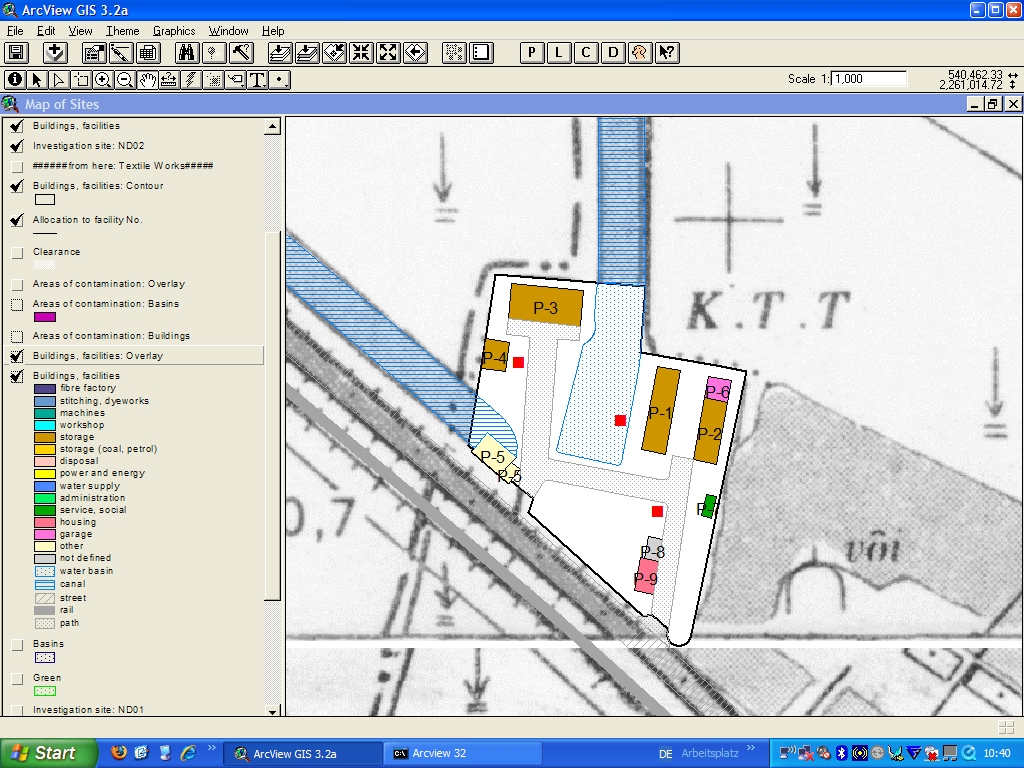

Fig. 7:         GIS-data linked with the database

5          Conclusions

The practical use of applying the register of contaminated sites is multifarious providing notably advantages for the areas environmental protection/health and economy:

• The investigation data provide the basis for decision-making on further measures of site-related environmental management. Only if it is known whether and where on a site uses suspected of causing contamination have taken place follow-up stages of sampling and analyzing can be planned purposefully.
• But with the recording data especially grave environmental impacts may be recognized early and respective emergency measures can be initiated. Thus, the health of the population concerned will be immediately improved.
• Preparing of digital maps and plans in the framework of recording forms also the basis for planning all further measures not only of specific treatment of contaminated sites but also for other fields of environmental management (monitoring data etc.).
• In Germany the planned approach has proved to be a most low-cost alternative. Thus, making costly wrong decisions due to a lack of site information will be largely avoided. In Germany the principle is applicable: that money which is invested in data collection will be repeatedly saved later on due to reliable decisions being made on the basis of a solid data stock.
